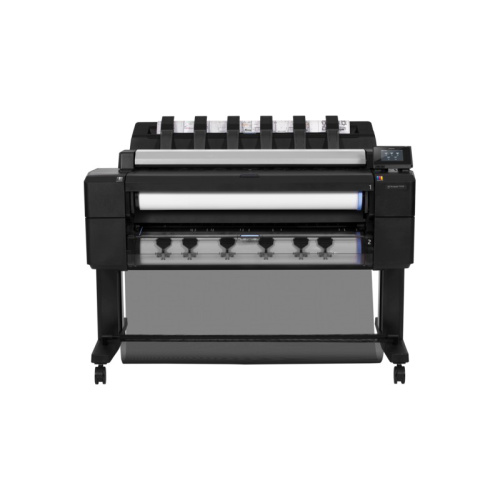

HP DesignJet T2530 36in PostScript Multifunction Printer

Printing TechnologyHP Thermal Inkjet
Maximum ResolutionUp to 2400 x 1200 optimized dpi
Print SpeedPrint Time Line Drawing: 21 sec/page on A1/D (economode)
Print Speed Line Drawing: 120 A1/D prints per hour (economode)
Ink TypeDye-based: C, G, M, pK, Y
Pigment-based: mK
Ink Droplet SizeC, M, Y, G, pK: 6 pL
mK: 9 pL
Ink Cartridge Configuration6 x Cartridges: cyan, gray, magenta, matte black, photo black, yellow
Ink Cartridge Capacity130 or 300 mL
MarginsTop x Bottom x Left x Right:
Roll: 0.12 x 0.12 x 0.12 x 0.12" (3 x 3 x 3 x 3 mm)
Sheet: 0.12 x 0.87 x 0.12 x 0.12" (3 x 22 x 3 x 3 mm)
Line Accuracy±0.1%
PrintheadC, G, M, mK, pK, Y
Minimum Line Width0.8 mil (0.02 mm) (HP-GL/2 addressable)
Guaranteed Minimum Line Width2.8 mil (0.07 mm) (ISO/IEC 13660:2001(E))
Maximum Optical DensityBlack: 2.15 D (6 L* min)
ApplicationsLine drawings, renderings, presentations, maps, orthophotos
Memory128 GB (file processing)
Hard Disk500 GB
Media Types & Handling
Paper HandlingInput: two automatic front-loading roll feeds, smart roll switching, sheet feed
Output: integrated output stacking tray (from A4/A to AO/E, with up to 50 A1/D-size capacity), media bin, automatic cutter
Paper TypesBond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
Media SizesStandard:
Rolls: 11 to 36" (27.9 to 91.4 cm)
Sheets: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm)
Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

Custom: 8.3 x 11 to 36 x 48" (21 x 27.9 to 91.4 x 121.9 cm)
RollExternal Diameter: 5.5" (14 cm)
Media ThicknessUp to 19.7 mil (0.5 mm)
InterfacesGigabit Ethernet (1000Base-T)
USB 2.0
Printer LanguageAdobe PostScript 3, Adobe PDF 1.7 Extension Level 3, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP-PCL3GUI, URF
Printing PathsDirect printing from USB flash drive, email printing, HP driver for Windows, HP driver for Mac OS X, HP Print Service for Android, Apple AirPrint driver
DriversIncluded: HP-GL/2, HP-PCL3GUI drivers for Windows and Mac OS X; PostScript drivers for Windows, Linux, and Mac OS X
Scanner TypeSheetfed, CIS (Contact Image Sensor)
Scan SpeedColor: Up to 2.5 in/sec (6.35 cm/sec)
Grayscale: Up to 7.5 in/sec (19.05 cm/sec)
Scan ResolutionUp to 600 dpi
Paper HandlingStraight-through scan paper path for sheet and cardboard originals
Maximum Scan SizeJPEG: 36 x 315" (91.4 x 800 cm) ()
PDF: 36 x 197" (91.4 x 500 cm) ()
TIFF: 24 x 590.5" (61 x 1,500 cm ()
ThicknessUp to 1.2 mil (0.03 in)
Reduction / Enlargement25 to 400%
Number of CopiesUp to 99 copies
Copier SettingsCopy quality, copy color, roll, content type, original paper type, background removal, contrast, de-skew, blueprints support
TemperatureOperating: 41 to 104°F (5 to 40°C)
Storage: -13 to 131°F (-25 to 55°C)
Operating Humidity20 to 80% RH
Acoustic NoiseSound Pressure: 47 dB(A) (printing); 39 dB(A) (ready); Sound Power: 6.5 B(A) (printing); 5.8 B(A) (ready); <1.9 B(A) (sleep)
Power ConsumptionPrinting: 120 W
Sleep: 1.3 W (5 W with embedded Digital Front End)
Input VoltageAuto Ranging: 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz)
Input Current2 A maximum
USA and Canada (CSA certified), EU (LVD and EN 60950-1 compliant), Russia (GOST), Singapore (PSB), China (CCC), Argentina (IRAM), Mexico (NYCE), Korea (KATS)

Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)

Dimensions (WxDxH)55.1 x 36.1 x 43.7" (139.9 x 91.6 x 111 cm)
Weight245 lb (112 kg)
  • Availability: 12 In Stock
  • Model: T2530 36in
