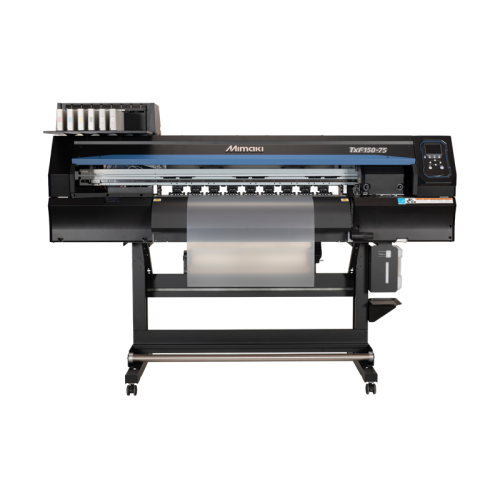

Mimaki TXF150-75 DTF printer
Mimaki TXF150-75 DTF printer
$7,850.00
Mimaki's first DTF (Direct To Film) printer
TxF150-75 is a reliable, high-quality printer incorporating Mimaki's technologies based on "safety and stability.” The DTF printer is designed to focus on stable quality, including functions to prevent "ink ejection failure" and "white ink clogging," which have been significant issues for DTF printers.
- Equipped with the newest version of Mimaki Circulation Technology (MCTv2) that prevents white ink sedimentation by constantly circulating the ink
- A degassed aluminum ink pack prevents nozzle clogging by reducing oxygen and other gases from mixing with the ink.
- The nozzle check unit (NCU) & Nozzle Recovery System (NRS) check for clogged nozzles and automatically perform nozzle cleaning and replacement without interrupting printing.
Our Core Technologies
Nozzle Check Unit
Nozzle Recovery System
Mimaki Circulation Technology
Mimaki Advanced Pass System
Specifications
| Printhead | On-demand piezo head |
| Print resolution | 720dpi, 1,440dpi |
| Print speed (4 color) | up to 35.5 ft²/hr (3.3m²/hr) |
| Maximum Print Width | 800mm (31.5″in) |
| Maximum media width | 810mm (31.9 in) |
| Maximum Media Thickness | up to 0.04″ (1 mm) |
| Maximum Media Weight | Up to 99.2 pounds (45 kg) |
| Ink Type | Heat transfer pigment ink PHT50 (C,M,Y,K,W) |
| Interface | Ethernet 1000 BASE-T / USB2.0 |
| Power Supply | Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1 |
| Power Consumption | 100V system: 1.44kW, 200V system: 1.92kW |
| Operational Environment | Temperature 20° – 30°C |
| Dimensions (W × D × H) | 1,965mm×700mm×1,392mm |
| Weight | 126kg (277.8 lb) |
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS),CB, REACH, Energy Star, RCM, KC |
Inks
| Thermal transfer pigment ink (PHT50) | Cyan | Magenta | Yellow | Black | White |
|---|---|---|---|---|---|
| 600ml | PHT50-C-60 | PHT50-M-60 | PHT50-Y-60 | PHT50-K-60 | |
| 500ml | PHT50-W-50 |
- Model: Mimaki TXF150-75 DTF printer
