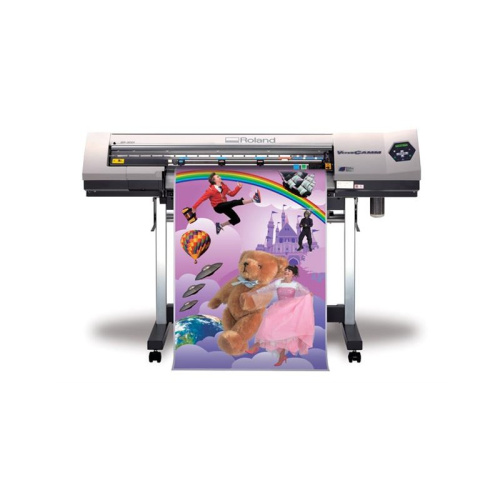

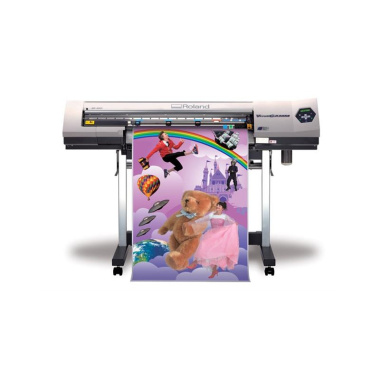

Roland VersaCAMM SP-300i 30 Eco-Solvent Inkjet Printer/Cutter

Printing Technology:

Piezoelectric inkjet

Media: Width:

182 to 762 mm

Media: Thickness:

Maximum 1.0 mm with liner, for printing. Maximum 0.4 mm with liner and 0.22 mm without liner, for cutting.

Media: Roll Outer Diameter:

Max. 180 mm

Media: Roll Weight:

Max. 20 kg

Media: Core Diameter:

76.2 mm or 50.8 mm

Printing/Cutting Width*1:

Max. 736 mm

Ink Cartridges: Type and Capacity:

Roland ECO-SOL MAX, 220 cc or 440 cc.

Ink Cartridges: Colors:

Four colors (cyan, magenta, yellow, and black)

Printing Resolution:

Max. 1,440 dpi

Cutting Speed:

10 to 300 mm/s

Blade Force:

30 to 300 gf

Blade Offset:

0 to 1.5 mm

Software Resolution when Cutting:

0.025 mm/step

Distance Accuracy when Printing*2*3:

Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater.

Distance Accuracy when Cutting*3:

Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled, or ±0.1 mm, whichever is greater

Repetition Accuracy when Cutting*3*4:

±0.1 mm or less

Alignment Accuracy for Printing and Cutting*3*5:

±0.5 mm or less

Alignment Accuracy for Printing and Cutting when Reloading Media*3*6:

Error of less than ±0.5% of distance traveled, or ±3 mm, whichever is greater.

Media Heating System*7:

Print heater, setting range for the preset temperature: 30 to 45°C. Dryer, setting range for the preset temperature: 30 to 50°C

Connectivity:

Ethernet (10BASE-T/100BASE-TX, automatic switching)

Power-Saving Function:

Automatic sleep feature

Power Requirements:

AC 100 to 120 V ±10%, 5.5 A, 50/60 Hz or AC 220 to 240 V ±10%, 2.8 A, 50/60 Hz

Power Consumption During Operation:

Approx. 730 W

Power Consumption when Sleep Mode:

Approx. 14 W

Acoustic Noise Level:

During operation: 64 db or less. During standby: 40 db or less

Dimensions with Stand/Weight:

1700 x 740 x 1125 mm/89 kg

Included Items:

Exclusive stands, power cord, blade, blade holder, media clamps, media flanges, replacement blade for separating knife, cleaning kit, software RIP, and user's manual, etc
