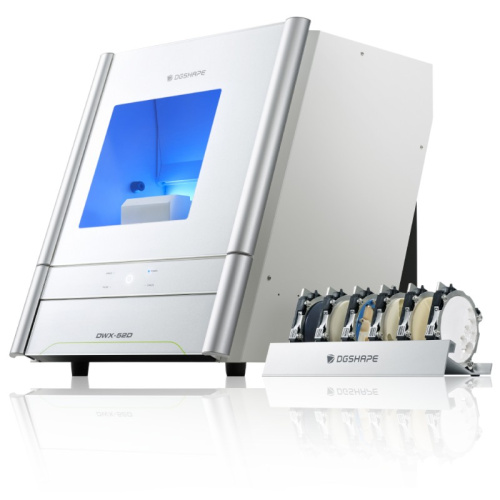

Roland DWX-52D 5-Axis Dental Milling Machine

$10,550.00
Qty:
Add to Cart Buy Now
Print

The next generation of the industry’s best-selling dental mill has kept everything users love, and then made it even better. Reliable, precise and affordable, the DWX-52D 5-Axis Dental Milling Machine now offers better disc handling, more material capabilities, improved tool management and other enhanced features, to deliver even more efficiency.

Specifications 

Cuttable materialZirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Glass fiber reinforced resin, Chrome Cobalt sintered metal
Loadable workpiece shapeExternal Diameter98.5 mm
Max Height60 mm
Step10 mm
Pin Type Diameter6 mm
Loadable workpiece weightUp to 850 g
Number of adapters housed6
Operating speedXYZ axis:6 to 1,800 mm/min. (0.24 to 70.9 in./min.)
Spindle motorBrushless DC Motor
Spindle speed6,000 to 30,000 rpm
Rotary axis travel angleA axis±360°
B axis±30°
Number of burs housed15
Attachable burShank diameter4 mm
Length40-55 mm
Compatible compressed air0.05/0.2 MPa (Automatic switch)
InterfaceUSB
Control command setRML-1, NC code
Power requirementsAC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1)
Power consumptionApproximately 200 W
Operating noiseDuring operation70 dB(A) or less (when not cutting)
During standby45 dB(A) or less
External dimensionsWidth 19.5 in (495 mm)
Depth26.0 in (660 mm)
Height23.6 in (600 mm)
Weight 147.7 lbs. (67 kg)
Installation environmentAltitude Up to 6,562 ft. (2,000m)
Temperature41 to 104 °F
5 to 40°C
Humidity 35 to 80% (no condensation)
Ambient pollution degree 2 (as specified by IEC 60664-1)
Short-term temporary overvoltage 1,440 V
Long-term temporary overvoltage 490 V
Included items Power cord, power plug adapter, USB cable, manuals, Roland DG software package CD, detection pin, automatic correction jig, pin-type material adapter, hexagonal driver, spanner, milling bur holders, milling bur positioner, dust collection hoses, dust collection hose adapter, regulator, cleaning tool, option adapter labels, material adapters, material adapter rack
Operating system Windows® 7/8/8.1/10 (32 or 64 bit)
USB cable Use the included USB cable

Specifications 

Cuttable materialZirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Glass fiber reinforced resin, Chrome Cobalt sintered metal
Loadable workpiece shapeExternal Diameter98.5 mm
Max Height60 mm
Step10 mm
Pin Type Diameter6 mm
Loadable workpiece weightUp to 850 g
Number of adapters housed6
Operating speedXYZ axis:6 to 1,800 mm/min. (0.24 to 70.9 in./min.)
Spindle motorBrushless DC Motor
Spindle speed6,000 to 30,000 rpm
Rotary axis travel angleA axis±360°
B axis±30°
Number of burs housed15
Attachable burShank diameter4 mm
Length40-55 mm
Compatible compressed air0.05/0.2 MPa (Automatic switch)
InterfaceUSB
Control command setRML-1, NC code
Power requirementsAC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1)
Power consumptionApproximately 200 W
Operating noiseDuring operation70 dB(A) or less (when not cutting)
During standby45 dB(A) or less
External dimensionsWidth 19.5 in (495 mm)
Depth26.0 in (660 mm)
Height23.6 in (600 mm)
Weight 147.7 lbs. (67 kg)
Installation environmentAltitude Up to 6,562 ft. (2,000m)
Temperature41 to 104 °F
5 to 40°C
Humidity 35 to 80% (no condensation)
Ambient pollution degree 2 (as specified by IEC 60664-1)
Short-term temporary overvoltage 1,440 V
Long-term temporary overvoltage 490 V
Included items Power cord, power plug adapter, USB cable, manuals, Roland DG software package CD, detection pin, automatic correction jig, pin-type material adapter, hexagonal driver, spanner, milling bur holders, milling bur positioner, dust collection hoses, dust collection hose adapter, regulator, cleaning tool, option adapter labels, material adapters, material adapter rack
Operating system Windows® 7/8/8.1/10 (32 or 64 bit)
USB cable Use the included USB cable
  • Availability: 12 In Stock
  • Model: DWX-52D 5-Axis
