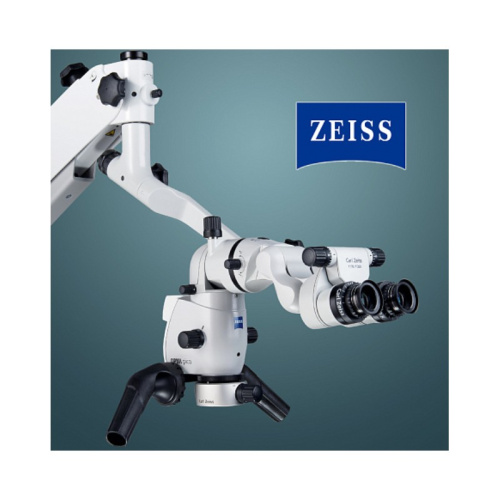

Carl Zeiss OPMI pico MORA Classic Dental Surgical Microscope

Dental microscope with MORA interface and varioscope | Carl Zeiss (Germany)

Characteristics

• 5 step zoom
• Orange light filter for working with polymeric materials
• Green filter for contrasting soft tissue
• Silicone sterilizable caps 12 mm for magnification block
• 120° coupler for increased maneuverability and extension of the harness
• Control knobs rotary non-removable
• dust cover
• Varioscopic lens Varioscop 100 with a focus range of 190-310 mm. 25% larger field of view compared to standard lenses
• VisionGuard lens splash protection (10 pcs.)
• 180⁰ adjustable binocular tube
• Wide-angle plug-in eyepieces 12.5x with individual settings, 2 pcs.
• LED lightening. Similar to daylight, does not require replacement for the life of the microscope.
• MORA interface with integrated documentation port. The MORA interface allows you to deflect the microscope lens by +/-25⁰ to the right/left relative to the operator in one movement. The documentation port allows you to connect photo/video adapters.

Mounting options

• 10FS. Outdoor mobile tripod with H-shaped base. A convenient and simple solution for clinics where device mobility is required. 10WM1.
• Wall mount with wall plate. The compact solution allows you to save space and harmoniously integrate the microscope into the overall concept of the cabinet. 10cm.
• Ceiling mount. The compact solution allows you to save space and harmoniously integrate the microscope into the overall concept of the cabinet

Specification

• LED lighting:  Coaxial fluorescent fiber lighting 12V, 100W, with quick lamp changer
• Working distance:  Interchangeable lenses with focusing lenses 200mm, 250mm, 300mm
• Tube:  180° wide angle swivel tube
• Eyepieces:  Wide-angle eyepieces for users with glasses 12.53; 103
• Magnification:  5-stage apochromatic magnification switch
• HD camera (integrated optional):  1 CCD, Y/C (S-video), FBAS (Composite), 752 (H) 3582 (V) PAL, 768 (H) 3494 (V) NTSC
• Signal to noise ratio:  50 dB
• Horizontal resolution:  480 lines
• Footswitch port for still images
• MORA Interface:  Mechanical Optical Rotating Assembly
• Swivel coupler for OPMI pico
• Swivel range:  +/- 25°
• Integrated, insertable annular diaphragm for increased depth of field
• Conformity:
  • DIN EN ISO 9001
  • DIN EN ISO 13485
  • DIN EN 60601-1
  • UL60601-1
  • CAN/CSAC22.2 No. 601

The OPMI pico microscope with Mora interface redefines mobility and ergonomics. You must fully concentrate on the treatment of your patients. This is best done with a comfortable position of the head and body. OPMI pico with MORA interface can be easily adjusted to the ideal working position. Thus, dental treatment using a microscope becomes even faster. The MORA interface increases the mobility of the microscope along the swing axis; while the straight, ergonomic fit of the user is not affected. This offers advantages when working with large surgical fields, for example, when treating several teeth. Depth of field can be changed using the manual aperture ring.

Backlight

The microscope allows you to choose between several lighting options, thanks to which the device can be configured to solve problems that may arise while working in a dental clinic. The lighting system turns on and off automatically. The peculiarity of lighting is that it does not overheat the optics and does not heat the working field.

Ergonomics

ZEISS engineers were able to make the microscope very ergonomic. Thanks to this, it is possible to adjust the focal length, while remaining in a comfortable working position. Due to its size, the microscope is perfectly integrated into any dental office, and can also be installed on the ceiling or wall.

Modern video recording

The OPMI pico mora Classic microscope has a built-in video camera that records in Full HD resolution. It takes photos and videos in very high quality, greatly increasing the efficiency of dental work. The microscope is equipped with the function of connecting external photo and video cameras, as a result of which work with patients and paperwork is greatly simplified.

Wide functionality

The handle located on the microscope lens allows you to quickly and widely adjust the focal length, so you can easily focus on the working area of ​​the oral cavity without having to move the microscope.

Smart Design

The OPMI pico mora Classic microscope is equipped with adjustable clamps, which makes it possible to select the position of the handles and set them at the required angle. The device is equipped with many options for handles: some can be rotated 360⁰, others can not only be rotated, but also removed for autoclaving, as well as T-shaped.

Adjustable tube

The microscope is equipped with a foldable tube that can rotate 360º. It allows you to change the focal length. Thanks to this, the device is characterized by a high degree of ergonomics and individuality. You work time, you can adjust the positioning specifically for yourself. As a nice addition - the PROMAG function, which makes it possible to get + 50% increase instantly.

• Availability: 12 In Stock
• Model: OPMI pico MORA
