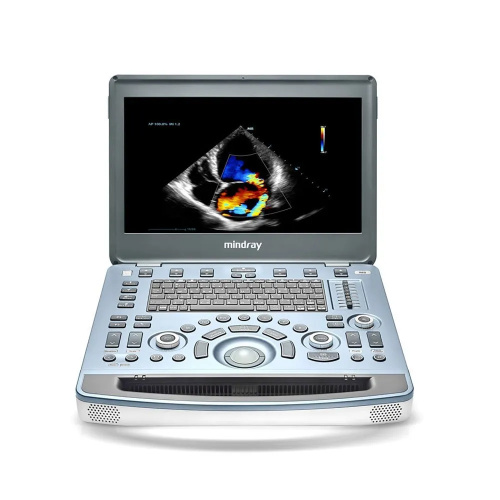

Mindray M8 Elite Peripheral Options:
• Digital BW Video Printer: Sony UP-D897, Mitsubishi P95DW-N
• Digital Color Video Printer: Sony UP-D25MD
• Graph/text printer: HP Deskjet 1050 J410 series, HP OfficeJet7000 wide format, HP OfficeJet Pro 8100
• USB Footswitch
• USB Digital ECG Kits (AHA/IEC)
• USB 240GB SDD
• USB Flash Memory Media
• USB Printer
• DVD Rrcorder
• Built-in Battery for Main Unit
– Replaceable and rechargeable lithium battery
– Full battery lasts more than 24h in standby mode
– Empty battery recharged to full in 4h
– Continuous work time: about 1.5 hour in B mode
Mindray M8 Elite Supplies:
• Aquasonic ultrasound gel
• Sono ultrasound wipes
• Console Protective Cover
• Sony UPP-110HG thermal printing paper
• Sony UPC-21L color thermal printing pack
• Mitsubishi KP95HG thermal roll paper (new)
• Mitsubishi KP65HM-CE High density thermal paper
• External USB printer connection
Mindray M8 Elite ports:
• I/O Port
– USB3.0: 2 ports
– ECG: 1 port
– HDMI: 1 port
• Video/Audio Extend port
– Video/Audio Extend module iDock51 (option)
– S-Video Output: 1 port
– VGA: 1 port
– Audio Output: 1 port
• Foot Switch: USB 2.0
– USB port: 971-SWNOM (2-pedal/3-pedal)
– USB port: FS-81-SP (1-pedal)
– Support User-definable functions (Freeze, Save, Print)
• DVD Recorder: Sony DVO-1000MD
– S-video, NTSC/PAL
– Recording only
• Barcode reader
– 1-D barcode reader: SYMBOL LS2208
– 2-D barcode reader: SYMBOL DS6707
Mindray M8 Elite image storage and documentation:
• iStationTM workstation
• Export Media: CD/DVD+R/-R/RW, USB Flash, External USB HDD
• Export Format: JPEG,BMP,TIFF,DICOM
• DICOM basic (option)
– Verify (SCU, SCP)
– Print
– Store
– Storage Commitment
– Media Exchange
• DICOM Worklist (option, HL7 supported)
• DICOM Query/Retrieve (option)
• DICOM Modality Performed Procedure Step – MPPS (option)
• DICOM OB/GYN structure report (option)
• DICOM Cardiac structure report (option)
• DICOM Vascular structure report (option)
• DICOM Breast Report (option)
