Newcon Optik NVS-15 Autogated 3rd Gen NVD Binocular with a Headgear

Newcon Optik NVS-15 Autogated 3rd Gen NVD Binocular with a Headgear
$4,500.00
Qty:

Newcon Optik NVS-15 Specs

Performance
Lens System27.5mm f/1.17
Magnification1x
Angle of View40° (Apparent)
Minimum Focus Distance10" / 0.25 m
Eye Relief25 mm
Interpupillary Adjustment52 to 74 mm / 2 to 2.9"
Diopter Adjustment-6 to +5
Night Vision
Infrared IlluminatorYes, Built-In
Intensifier Tube1 x Gen 3
Resolution64 lp/mm
Environmental
Water ResistanceWaterproof
Environmental ProtectionAdvertised as Water Resistant
*Test Methodology Not Supplied
Operating Temperature-58 to 131°F / -50 to 55°C
Storage Temperature-58 to 158°F / -50 to 70°C
General
Battery2 x AA
 • Up to 40-Hour Runtime
or
2 x CR123A
Dimensions4.7 x 4.6 x 2.7" / 120 x 118 x 69 mm
Weight28.5 oz / 725 g

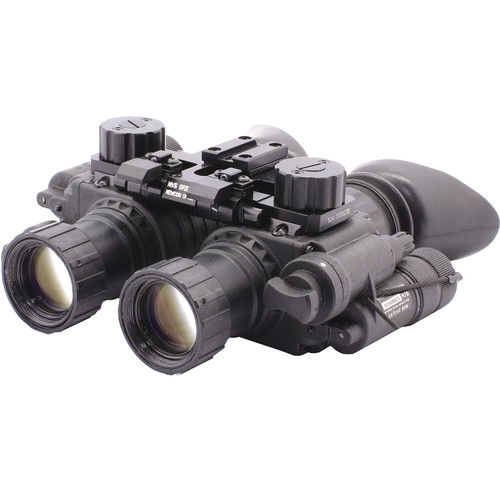

The NVS-15 Autogated 3nd Gen NVD Binocular from Newcon Optik includes a headgear and features two 64 lp/mm high resolution 3rd generation intensifier tubes with GaAs photocathodes. If you are moving through environments with changing infrared lighting conditions and need to adjust brightness of your images, you can use a manual gain control. The optical system features a 27.5mm f/1.17 lens, a 1x magnification, a 40° angular field of view, and a 10" minimum focus. If you are training or conducting a mission in complete darkness with no ambient infrared, you can use a built-in infrared illuminator to illuminate your targets. The included headgear is completely adjustable and connect to this NVD via integrated adapter.

The rugged and durable construction features a housing that can endure extensive temperature ranges and is submersible to 3' for a half an hour. Additionally, the binocular features a modular design, where, the two tubes are completely independent entities that are connected by a bridge. Therefore, they can be disconnected and used independently while mounted to a barrel or as handheld devices. Also included with this NVD are headgear, two AA batteries, lens covers, a carry case, and a lens cleaning kit.

Intensifier Tube
  • Two autogated 3rd generation intensifier tubes
  • Black and white images
  • Image resolution: 64 lp/mm
  • GaAs photocathode
Optical Performance
  • Main unit magnification: 1x
  • Lens system: f/1.17, 27.5mm focal length
  • Field of view: 40°
  • Close focus: 10"
Use and Handling
  • Modular design allows separate use of each monocular
  • Each monocular can be used in handheld, mounted to a barrel or a head mount
  • Proprietary bridge attachment allows adjustable interpupillary distance
  • Manual gain control allows for manual control of brightness and detail
  • Auto shutoff function helps save battery life
Construction Details
  • Mountable to the included headgear or used as handheld device
  • Withstands extreme temperatures
  • Waterproof submersible to 3' for 30 minutes
